NFTY

The export card scrolled on every tab, at every window size the app allows.

2,286 tests, 0 failures.

What was wrong

Opening Export and switching to IMAGES put the whole watermark group below the fold, cut

"Stamp each asset's set number in a corner" through the middle of its letters at the

scroller edge, and left the corner picker — the control that is supposed to say what it

does by its shape — drawn as four unexplained specks.

None of it was visible in review, because the card was being photographed **780 pixels

tall. A modal in this app is never given more than 526**. So every frame of it was a

picture of a card no window hosts, and it looked tidy in all of them.

The one assertion about its height checked that the card clamps to the page it is in —

which the framework does on its own. Nothing asked whether the contents fit inside it.

What changed

Measured, the three pages want 246, 251 and 213 pixels. The shared floor said 262 and

credited that to CONTENTS; the tallest page is IMAGES.

• The head was three rows for one idea — a • EXPORT kicker above a title reading

"Export this Set" above the tabs, 98px of a 470px card. The title and the tabs share one

row now, which is how the Set browser's own header already reads. 98 → 40.

• The manifest's contents are a run, not a column. Five short phrases down five lines

spent about 80px of a pinned block on fifteen words.

• The manifest is reserved at its tallest. The pages already shared one height so they

could not move it; nothing stopped it moving *them*. It measured 113, 145 and 130 as a

spritesheet line and a debug caveat came and went, and the card is centered — so

switching tabs grew the card and shifted every row in it.

All three tabs are now identical, the card fits the smallest window with 30px to spare,

and nothing scrolls.

The corner picker

Unarmed, it was disabled, and the app dims a disabled control to 38% — which is legible

over strong ink and invisible over a hairline and a near-black ground. Restoring the

opacity brightened the dots and still drew no cells: the edge is painted by a part of the

button template whose brush Fluent replaces in its own disabled state, so it has to be

asked for again. The cells keep their strength now and the mark carries the state.

Every capture of this card had both boxes already ticked, so no frame had ever drawn it.

Downloads

The two .NET builds need the [.NET 10 desktop

runtime](https://dotnet.microsoft.com/download/dotnet/10.0); the other two carry everything.

Spritesheets, a debug number on every sprite, and a DNA space that stopped fitting in a long.

2,286 tests, 0 failures.

Two tags in one release: v1.6.0 is the large-integer audit, v1.7.0 the features on top of it.

Export as spritesheet

Every asset stitched into one image, left to right then top to bottom **in the Set's own

numbering** — so cell *n* is asset *n+1*, and an engine indexing frames agrees with a reader

counting rows without anything being recorded. You give it columns and rows; both boxes open

already filled with the squarest grid that holds the collection, and the pixel size sits beside

them so the two numbers explain themselves.

A short last row leaves transparent cells, because that is what a spritesheet looks like and

closing the gap would renumber every frame after it. A missing asset leaves a hole rather than

failing the sheet — a gap among drawn cells is unmistakable, which is the point.

There is a real ceiling, and it refuses with the numbers rather than dying: a sheet is one

contiguous raster, so 500 assets at 1000px in a 23×23 grid is 529 megapixels and about 2 GB of

RGBA. A refusal an author can act on beats an OutOfMemoryException half a minute in.

A set number stamped on every sprite

Loose sprites lose their filenames the moment they are dragged into an engine or a chat window,

and a folder of five hundred near-identical characters is unsortable. Tick the box, pick a corner,

and every exported asset carries its set number — so a loose sprite cross-references

nfty/NNNN.json with nothing else written down.

The digits are a 3×5 bitmap font, not a typeface. A real font would mean a new dependency

beside an ImageSharp pinned on purpose, and would put grey anti-aliased ink on art that has no

grey anywhere in it. White over a one-pixel black halo, so it reads on any ground; it declines to

draw rather than clip, because a "12" cropped to "1" is a wrong answer where a missing stamp is

merely a missing one.

It never touches your Set. The export renders a stamped copy and ships that. Stamping runs

before stitching, so the sheet carries the same numbers its sprites do.

Progress that means something

Opening a Set ran on the UI thread. That unpacks a .set into a temporary directory and reads a

file per asset, so a real collection froze the window for seconds with nothing on screen saying

why. The async path had always existed — nothing was calling it.

There is one small card for every job that has no screen of its own, and the export's bar is a

real fraction now instead of spinning whatever it was doing: a barber pole for minutes is

indistinguishable from a hang. Indeterminate survives only where the work genuinely cannot count.

The export card is three pages — CONTENTS, IMAGES, SEAL — with the manifest and the footer

outside the tabs, because what is going and what is stopping it are the two things you should

never have to go looking for. It also stopped stretching, which was costing about 230px of empty

panel on every page.

The DNA space outgrew a long

Six layers of ten variants at a 10°/10% quantize is about 2.2e21 distinct assets, against a

long's 9.22e18 — so that book's headline figure read more than 9,223,372,036,854,775,807: a

constant, printed where an author is trying to read a count. The totals are BigInteger now and

the ceiling is gone rather than raised again, along with the saturating arithmetic that

existed to keep a number inside a type too small to hold it.

The figure prints in full whenever it fits, measured against the cell at the window you

actually have — so a maximised window shows what the smallest one abbreviates — and the exact

digits are always on the tooltip. Past the named magnitudes it becomes an exponent, because there

is no name above "quintillion" that a reader knows.

Seven smaller things went with it, each probed by reverting the fix:

• A NaN colorization range validated clean. Every check in CheckRange is false for NaN,

so the inverted-range test and both axis tests all waved it through.

• Describe claimed "at most 1 in a trillion" on a bounded figure, which is a tighter bound

than the arithmetic supports. That branch had only ever been tested unbounded.

• A target over an AtLeast space warned that the supply would not fit. That total is a

floor, so it proves nothing — and it is exactly the count a big book produces.

• A Set past ten thousand assets loaded in the wrong order: the reader sorted by filename, and

the stem pads to four, so 10000.json sorts before 9999.json.

• A non-positive enumeration budget was laundered into an answer instead of refused.
• One unchecked multiply in the odds walk, safe only at the default budget.
• Rare traits all printed 0% — the same string a trait nothing carries gets — and sorted

arbitrarily, because a data source was rounding for display. Two of the three surfaces that

print a share were also culture-sensitive, under comments promising otherwise.

Downloads

The two .NET builds need the [.NET 10 desktop

runtime](https://dotnet.microsoft.com/download/dotnet/10.0); the other two carry everything.

One mark instead of two, and a reorder that waits for its own write.

2,220 tests, 0 failures.

The brand mark is the application icon's own symbol

The product wore two marks and nothing in the code said they were meant to agree: a

lowercase "n" turned 45° in the titlebar, and a plain rotated square on the quick-reference

sheet — which is what the titlebar's own comment says it had replaced. The sheet's had

already drifted.

A letter rotated into a diamond spells the name and says nothing about what the app makes.

The mark is a stack of layers with the top one live, which is what an asset *is* here —

drawn once in Views/BrandMarkView.axaml and used by both. Its ink is AccentBrush over

FgBrush, so light and dark are one drawing rather than two, exactly the way the icon set

already works.

It carries two layers where the 256px card carries three, and the shipped 64px favicon

makes the same cut: a third row at 24px is a smear rather than a layer.

tools/icons/make-app-icon.py redraws nfty.ico from the theme's own token values rather

than exporting a copy, and keeps its per-size tuning — the small sizes now vary *how many

layers* rather than a letter's contrast. The .ico shows the symbol on the app's washed

tile rather than the card, because the wordmark is unreadable below 64 and a near-black

ground vanishes into a dark taskbar, which is the size and the place this is seen most.

TextBlock.brandmark is deleted with the glyph it described. The README's second badge

points at the brand art in the site repo, closing the backlog entry that asked for it.

A locked file was the disguise on a real race

ExplorerTreeReorderTests' drop test failed about four runs in six with an IOException

out of Cleanup — the temp directory deleted while the persist still held

book.cbk.<guid>.tmp open. That reads as a file-locking nuisance and is nothing of the kind.

A teardown that throws replaces the assertion failure underneath it. The drop handler is

async void, so MouseUp returns the instant PersistAsync reaches its first await — the

assertion on the moved stack was failing too, and the finally's exception took its place.

Dispatcher.UIThread.RunJobs() drains what has been posted and returns; it is not a wait,

which is why this tracked disk speed and passed nine times running on a fast machine.

Two fixes, each probed by breaking it:

• Every reorder shares one in-flight flag. The tree's drag and its reentrant Alt+Up

chord arrived through MoveNodeToAsync carrying no guard at all — the same door

MoveLayerAsync was already guarded for, reopened one screen over. They all write the

whole book back to one archive, so two in flight collide whichever gesture started them.

One flag, not one per gesture: a second would only make each door safe against itself.

Refused rather than queued — a queued move is computed against a stack the reader can no

longer see.

• ExplorerView.PendingReorder is the task the gesture started, which is the one

observable trace an async void handler leaves. The gesture tests await it instead of

pumping once or polling on a timer; a sleep-until-it-looks-right loop passes for the wrong

reason on a fast disk.

The guard is pinned by re-entering from inside ICookBookSession.Replace — the one moment a

persist is *provably* mid-flight — because starting a second gesture from the test body and

hoping it overlaps proves nothing on the machine where it does not.

Downloads

The two .NET builds need the [.NET 10 desktop

runtime](https://dotnet.microsoft.com/download/dotnet/10.0); the other two carry everything.

Two features and a fix to the harness. 2,219 tests, 0 failures.

The combined chance is exact now, when the CookBook is at hand

The Set browser's this combo 1 in N was the product of the rarity rows above it, and

that is an estimate twice over: it assumes the layers roll independently, and it is

built from the shares this *Set* happened to produce rather than from the weights the

book asked for.

CookBookLocator already finds a Set's book by hash — so a folder of a dozen books

produces no answer rather than a wrong one — and SelectionOdds (in Core, so the CLI

and the GUI cannot disagree) prices an asset from it. Generation is rejection sampling,

so the correction is the whole feature:

```

w_r/W × P(layers)

P = ------------------------------------------------

SUM over recipes of w/W × P(it rolls legal)

```

The denominator sums over the whole book, not one recipe, because a rule violation

throws the recipe roll away too. With no rules anywhere it is exactly 1 and the figure

reduces to the product — which is the right relationship between the two: the estimate

is this model with its correction dropped.

On the test book, whose background rolls 70/30 and whose aura rolls 60/40 with a rule

excluding one pair, the surviving combinations are worth 47.73%, 31.82% and

20.45%. Multiplying the Set's own twelve-asset shares says 48.61%.

Giving up costs a *direction*, not the answer: every legal mass is at most 1, so a book

too large to walk reports the numerator as a true floor — *at most 1 in N* — rather than

a guess. And it reads the book as manifests alone (ArchivePeek.CookBookTree),

because a probability is a few dozen weights and a full read would pull every variant

PNG in the collection into memory to reach them.

Without a book beside the Set nothing changes except honesty: the figure carries a ~

and its tooltip says what it assumed.

The canvas zooms and pans

An 8px sprite in the editor's tile is forty device pixels to the art pixel. A 512px

drawing in the same tile is under two thirds of one — finer than the backdrop will even

draw a lattice at.

• Wheel to zoom, anchored on the pointer.
• Middle-drag, or the arrow keys, to pan.
• + / - / 0, and a chip at the corner of the canvas whose label is the current

zoom and whose click is *fit*.

The zoom exists in exactly one function — the one the pointer, the marquee and the

backdrop lattice are already mapped through — so the pixel you click is the pixel you

paint, and the lattice stays in phase with the art, at every magnification.

The editor opens in the view you left

The pixel grid, its step, the preview tile's size and which half of the rail is showing

are remembered between sessions. An author who paints 16px sprites on an 8px lattice was

setting that on every layer they opened.

Zoom and pan are deliberately not remembered — they belong to the image, and opening

an unrelated layer magnified and panned into a corner is a lost canvas rather than a

restored preference.

And four screenshots that were of the wrong thing

The harness's four REFERENCES frames reached that panel by scrolling the colorize rail

to its end. Splitting the rail into two tabs moved the panel out of that scroller and

the scroll became a no-op — leaving four frames named refs, every one a picture of the

colorize rail, with the tab bar beside them announcing "REFERENCES 3/5" about a panel

nothing showed. Nothing failed, because a capture asserts nothing. It asserts this much

now.

Downloads

The two .NET builds need the [.NET 10 desktop

runtime](https://dotnet.microsoft.com/download/dotnet/10.0); the other two carry everything.

One placement fix. 2,172 tests, 0 failures.

The rarity unit is a page-level control now

The % | 1 in N toggle sat in the rarity table's own sub-header, which said it was *that

table's* setting — and it is not. It drives the trait column and the asset's own combined

chance, which sit in different panels. A reader who switched to odds and then found one

figure still reading in percent has been told the screen is inconsistent about its own

numbers. It always did drive both; only its placement said otherwise.

It is in the page header now, beside Export — everything to the left of there is a fact

about the Set, everything to the right is a control:

```

VaporCats [ASSETS 6] [SEED seed1] [RECIPES 1] RARITY [ % | 1 in N ] [Export…]

```

Exactly one tray, which is what stops a second copy reappearing next to the thing it governs.

Two tests hold it: one asserts the column header, the rarest-trait line and the combined

chance all move together; the other asserts the tray's count *and* its place.

The label is its own class rather than the chip label's — a bare .ck is only styled inside a

chip, so outside one it took the inherited 14px and read a size larger than every chip on the

row. Caught on a captured frame.

Downloads

The two .NET builds need the [.NET 10 desktop

runtime](https://dotnet.microsoft.com/download/dotnet/10.0); the other two carry everything.

One fix. 2,170 tests, 0 failures.

A missing asset image now looks like damage

SetItemRow.Decode falls back to a 1×1 transparent bitmap rather than throwing — a browser

over a damaged Set should show the damage, not refuse to open. But the moment that

placeholder was published IsLoading went false, the breathing diamond that covers a pending

decode went with it, and the tile settled into a flat empty square: indistinguishable from

a decode still in flight, and from a fully transparent asset, which is a legal thing to mint.

Found by opening a Set whose folder had been half cleaned up — 24 images for a 60-asset Set,

and 36 tiles that looked like they were still thinking.

The decode returns the flag beside the bitmap now, and the tile draws a mark: the **same

diamond**, so an unfilled tile still looks like part of the product rather than a hole in it,

but static and in the warning ink. Static is the whole point — a pulse means "coming", and

nothing is coming. The detail rail's preview carries the same mark, because a blank square

there is the identical defect one level over, and both carry a tooltip naming what happened.

Two tests either side of it: one asserts the mark is drawn only on the row that lost its file

and that the loading pulse is absent; the other that an intact Set draws no marks at all.

Neither can pass on a constant.

Downloads

The two .NET builds need the [.NET 10 desktop

runtime](https://dotnet.microsoft.com/download/dotnet/10.0); the other two carry everything.

Two fixes to what the app *says*, following 1.3.0. 2,167 tests, 0 failures.

A brand-new CookBook no longer greets you with an error

Make a CookBook and the status bar says 1 problem before you have made a single

decision. The problem is real — CookBook has zero total recipe weight — and it is exactly

what the CLI prints, but to a first-time author it reads as something they broke.

The report leads with the explanation now:

> 1 problem — Fresh Book

> *This CookBook has no Recipes yet. Add one, then add Ingredients to it — until there is

> something to stack, there is nothing to cook. Nothing below is a mistake you made.*

> 1 · CookBook has zero total recipe weight.

It is derived from the graph, not from matching Validator's wording — a reworded message

must not silently stop being recognised — and it names the empty Recipes, because "add an

Ingredient" without saying where is barely better than the raw problem.

The kicker gets a third state: a half-built book is not a broken one, so it takes a plain

dot rather than the warning ink. And the footer stops saying "cooking is refused until these

are fixed" on a book nobody has started — true, but the reader was just told what to do one

line above, so a refusal underneath is a telling-off carrying no information. On a genuinely

broken book it still says exactly that.

An asset's rarity, as a percentage or as odds

Three answers the Set browser's rail could not give, all from the numbers it was already

showing.

The unit toggles. A percentage compares traits to each other; odds are what "how rare is

this one" actually asks — 4.17% against 2.08% reads as a near-miss where 1 in 24 against

1 in 48 does not. The whole column switches, header included.

The whole asset's odds. "The lock is 1 in 4 and the bands are 1 in 3" is not an answer to

how rare the *asset* is. The rail now prints this combo 1 in 43,200 beside the id — the

product of exactly the rows underneath it, recipe share included, so you can check it by

hand. It assumes the layers roll independently, which incompatibility rules and optional

layers both break, and the tooltip says so.

The rarest trait stays beside the RARITY heading. Deliberately not a rarity *score*: the

sum of the reciprocals is a convention this project has never adopted and would have to

invent, where the rarest trait is a fact already in the table.

Downloads

The two .NET builds need the [.NET 10 desktop

runtime](https://dotnet.microsoft.com/download/dotnet/10.0); the other two carry everything.

Four fixes and three features across the Explorer, the Recipe and Ingredient panes, the

Ingredient Editor and the Set browser. 2,154 tests, 0 failures.

The one that mattered

The Ingredient Editor could save into a read-only CookBook. The pencil opens the editor

whether or not the edit lock is on, and that is deliberate — the editor is also how you

*look* at a layer. Saving from it was not. The editor took no lock at all, so a book the

Explorer was refusing to add to, delete from or reorder could have a layer's manifest

rewritten, its KIND changed and the whole archive persisted, from one click away, with the

titlebar still saying read-only.

The gate is checked inside Save() as well as in CanSave: a generated

RelayCommand's ExecuteAsync does not consult its own CanExecute, so the disabled

button was the entire enforcement — and a disabled button is a label. Painting stays live;

a read-only editor is a scratch surface, and the footer says so from the moment it opens.

Reorder in the Contents tree

Drag, or Alt+Up / Alt+Down, on recipes and layers, among their own siblings only.

The two moves are not the same act and the status line says which. A layer move rewrites

layerOrder, which is the paint order — and the generator consumes one RNG draw per layer

in order, so the same seed over a reordered recipe is a *different collection*. A recipe

move is presentation and cannot change an asset, because the roller sorts its keys ordinally

before it rolls anything. Both are gated by the edit lock all the same, and books open

read-only.

Recipe order had nowhere to live, so CookBookManifest.RecipeOrder is new: optional,

additive, no schema bump, and tolerant of going stale.

The rest

• The reroll die has six faces, lands on a new one every press, and its single pip is

red. No more "sample 1" — that number was the reroll *count*, not a fact about the recipe.

• The recipe's layer rows scroll under a pinned header instead of running off the pane.
• The ingredient hero is a 2×2 block that pages — one height in every book, where before

it grew a row per two variants and pushed the pane's own buttons off the screen.

• The validity count is a button. "3 problems" used to put the problems on a tooltip;

both it and the CookBook card's chip now open the full numbered report. It opens on a

*valid* book too and says what was checked.

• The Set browser's rail shows the asset it is describing — a live preview that follows

the hover, the right-click-to-keep and the inspector, beside the id it already showed.

Known, not fixed

A cooked Set whose image files are missing draws blank tiles and says nothing — a missing

file ends up looking like one still loading, forever, and identical to a fully transparent

asset. Found by opening a Set whose folder had been half cleaned up. Recorded in CLAUDE.md.

Downloads

The two .NET builds need the [.NET 10 desktop

runtime](https://dotnet.microsoft.com/download/dotnet/10.0); the other two carry everything.

The README gets a hero frame. No engine, CLI or GUI behaviour changes — the binaries are

1.2.6's, rebuilt so every archive carries the current file.

The frame

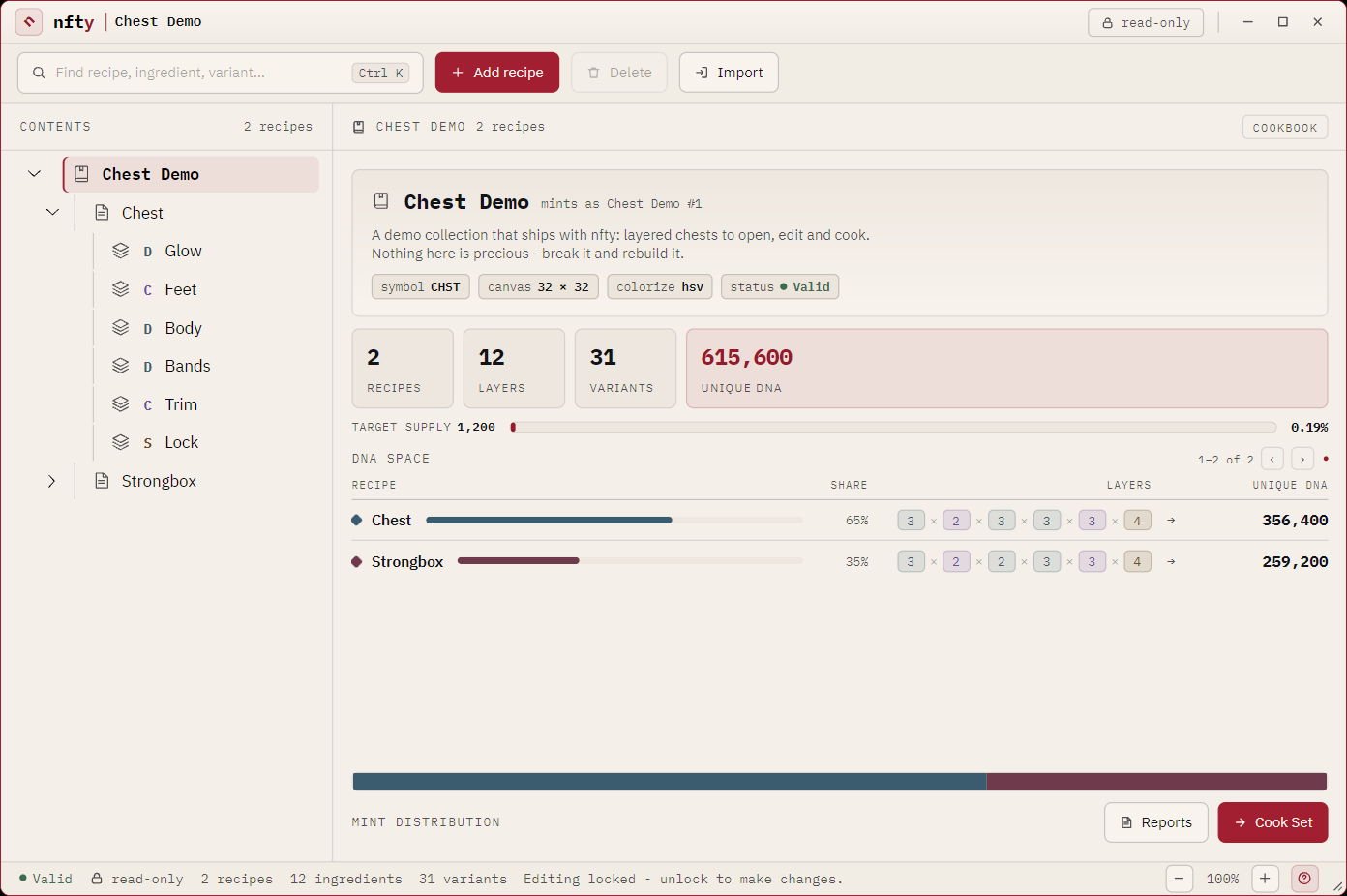

One pair, light and dark, swapped by the reader's theme: the Explorer with the built-in demo

CookBook open — a layer tree beside a card reading **2 recipes · 12 layers · 31 variants ·

615,600 unique DNA**. It is the README's own thesis stated as a picture.

Shot from the running app with tools/docs-capture, not from the VisualCapture harness,

whose 8×8 fixtures render empty panels and quote "2 unique DNA".

It lives in assets/readme/, deliberately outside docs/manual/images/. That whole figure set

still shows Vapor Pets on the pre-1.2 card layout, and BACKLOG.md holds the reshoot as a single

pass that has to move the tutorial prose with the pictures — half of it would leave one document

showing two collections. A README hero sits outside that document, so it can be current on its own.

assets/readme/README.md carries how to reshoot it and what the frame has to show.

It is referenced by absolute URL rather than a relative path, because every release archive carries

README.md and a relative image path there points at a file the archive does not contain.

Also

• Backlogged: the project icon the other Vaporsoft repos carry beside the Vaporsoft logo. The

mark exists and tools/icons/make-app-icon.py already generates it from the theme's own values —

the work is teaching that script to emit a web-sized PNG too, which is the only way to add one

without creating the second copy IconSourceTests exists to prevent.

• Corrected a stale number in BACKLOG.md: it said the window minimum was 1200x712. It has been

1280x720 since the milestone commit.

Downloads

The two .NET builds need the [.NET 10 desktop

runtime](https://dotnet.microsoft.com/download/dotnet/10.0); the other two carry everything.

The README is rewritten. No engine, CLI or GUI behaviour changes in this release — the

binaries are 1.2.6's, rebuilt so every archive carries the new file.

The README

It now follows the flow the other Vaporsoft repos use: tagline, grounded intro, grouped

badges, Table of Contents, Overview and Capabilities, Requirements, Installation, Quick

Start, Concepts, Architecture, Command Line, Desktop Application, Performance,

Development, Deployment, Troubleshooting, Links, Contributing.

Every figure in it was checked against the repository rather than carried over:

• Five real commands were missing — demo, export, add rule, remove rule and

set chance — and inspect had grown .set and .tin since the table was written.

• The test badge said 1672 and the layout said 1454. A full run is 2,088: 152 CLI,

1,058 Core, 878 App.

• 615,600 was re-derived with stats, and the demo's eighteen distinct sprites counted

out of the archive itself.

• Sealing, export, optional layers and the counted DNA space had no place in the file

at all, which left the two features most likely to be asked about undocumented.

• Two screenshots were drafted and pulled again: docs/manual/images/ still shows Vapor

Pets on the pre-1.2 card layout, which BACKLOG.md already holds as a deferred reshoot.

A stale frame in a README is worse than none.

The project tree and the pipeline sketch were also brought under 80 columns, so a narrow

viewport no longer cuts the right-hand end off every line.

Downloads

The two .NET builds need the [.NET 10 desktop

runtime](https://dotnet.microsoft.com/download/dotnet/10.0); the other two carry everything.

Six fixes, every one of them found by looking at a rendered frame rather than by

a failing test. None was a crash; all six screens looked perfectly tidy.

The editor's two strips wrap by GROUP (v1.2.1)

Both were WrapPanels handed a dozen loose controls, so the break fell wherever

the arithmetic put it. At the window the app opens at, the toolstrip wanted

557px of a 556px pane and broke after the swatch — the brush-size box alone on a

second line beside six hundred pixels of empty row. The palette strip fitted its

first three groups by nine pixels and stranded the alpha axis and its lock

the same way.

Controls/StripPanel.cs takes GROUPS, so a break always falls between whole

ideas, and it chooses the break that leaves the least *visible* gap. One child

per line may be elastic: the value ramp and the saved-swatch run both grow into

a wide window, and growing the saved run is the only thing that makes its own

horizontal scroller stop appearing.

One saved palette per paint mode (v1.2.2)

The saved swatches did not swap with the mode — the ramp did and the row beneath

it did not, so painting a value-map was done over a row of saturated cells that

each silently armed a gray, several of them the same gray. There is a palette

per mode now; a CookBook's own palette, which records no mode, is routed by

grayness.

And the destructive direction is the other one: gray → color is a widening that

loses nothing, while color → gray loses no pixel either and changes what Save

writes. The art stays on the screen, the canvas stops showing it, and the file

will not contain it. It asks once per session, and the footer keeps saying it

afterwards.

The wizards fit the smallest window (v1.2.3)

Five modal states scrolled at the window minimum, and the test meant to

prevent exactly that agreed with all of them: it measured at a raw 1180x720,

wider *and* taller than any page a modal is ever given. The real area is about

1067x526. Measured there: New Ingredient overflowed by 112px, its loose state by

149, Import Image by 194, New CookBook by 58.

The form was never too big — the card was too narrow. 880px, two columns, and

the halves are the two questions each form asks. The import preview went from

64px to 160: 64px of a 512px drawing is a swatch, not a preview.

Six screens that knew something and did not say it (v1.2.4)

The rule dialog was the one modal not speaking the app's grammar. The invalid

CookBook said 1 problem and never said what. A search that matched nothing drew

the CookBook root with nothing under it. The selected tile was invisible in light

mode. The Ingredient pane's hero grew a share bar per variant and pushed its own

buttons off the screen. And COLORWAYS showed no colorways.

Landing said the Kitchen's name twice (v1.2.5)

Three hundred pixels apart, on the same screen.

Fixed

The canvas grid did not line up with the pixels. It was a fixed 18px checker tiled from the pane's own corner, so its squares stood in no relation to the art drawn on top of them — a pixel covered part of one square and part of the next, and how much changed with the canvas size and with where the artboard happened to sit. That is harsher on the eye than no grid at all: the drawing reads as out of register with its own background.

A square is now one canvas pixel, and the lattice starts on the art's own corner, so every pixel edge falls on a square edge.

New

A grid step. How many canvas pixels one square covers. One is a true pixel grid and the default; set it to 8 and a 16px sprite is two squares across. It is also what to reach for on a large canvas, where one square per pixel is finer than the screen can draw — a 512px canvas in the editor's tile puts a pixel at under two thirds of a device pixel, and a checker that fine is not a pattern, it is a flat average, so below that floor the flat ground is drawn instead.

An off switch. Paints the theme's own page background instead of the lattice — dark in dark mode, light in light. Small sprites on a transparent field read better against a grid; a full-bleed illustration reads better against nothing.

Both controls sit on the canvas itself, bottom-left, opposite the preview tile and in the same chrome. Neither is in the tool strips above, which already wrap at the window sizes this app allows.

Downloads

The current build. Everything from v1.0.1 through v1.1.0 is in it.

Fixed

The detail rail was updating where you could not see it. Clicking a tile selects the asset *and* opens the viewer, in that order — so the panel did change, underneath a modal covering it, and only appeared to catch up once you closed the viewer again. A grid of hundreds of tiles is scanned rather than read, and the only way to find out what one was meant opening the viewer directly over the panel that answers the question.

The rail now describes whatever the pointer is over, falling back to the selection. Moving off the tiles puts it back on the selection rather than leaving it describing an asset you have left.

And the right button keeps one. Left-click still means "show me this bigger". Right-click marks a tile active and opens nothing — for comparing one asset's rarity against another, or saving it, which had no gesture at all.

Three states, three marks, and none of them moves anything on the screen: the selected tile takes an accent hairline, the hovered tile a brighter neutral one, and the rail carries a line saying which of the two it is describing. Save reads the same asset the rail shows, so the two cannot disagree.

Downloads

New

Import a picture as a layer. Most people have art before they have an .igt, and the only way in was to create an empty ingredient, open the editor, import the file into its blank variant and save. Import now takes .png, .jpg and .jpeg alongside .rcp and .igt.

A picture opens a form that asks the one question that matters and is not reversible by hand — which kind of layer this becomes:

• Custom keeps the picture untouched and composites it as-is. This is what "import my art" usually means.
• Dynamic and Static keep only its *lightness* and take their color at generation time. That throws the picture's own colors away on purpose — it is how one drawing becomes thousands of colorways — so the form previews the picture as the chosen kind will store it, and says plainly when there is color to lose.

A wrong-sized picture is refused before the form opens rather than after you have filled it in: every variant in a book is the canvas size, and nfty resamples nothing. A name already taken in the recipe is reported while you can still retype it. The new layer lands in the editor afterwards, like every other way of creating one.

Colors are collapsed by *luminance*, not by reading one channel — so pure green imports as mid-bright rather than black. That rule now lives in one place, shared with the editor's own variant import, so the same file cannot import differently depending on which button you pressed.

Downloads

Two faults on the Export screen, both reported.

Fixed

The preset stopped being lit for the wrong reason. A preset names *what leaves the machine*; folder-or-file is packaging. The match compared the shape too, so every preset came un-named the moment you changed it: ticking all four content boxes and choosing Single file left *Full project* lit until the shape was touched, and then lit nothing at all. *Marketplace* did the same in the other direction and was never reported, because its default shape is the one nobody changes.

"Source CookBook" meant "and now go and find the file." A Set records its book's hash and never the book, so the dialog had no path to follow — but it can *check* one. It now looks at the books the app already knows (the one that is open, ones you opened recently) and any sitting beside the Set, and keeps whichever one hashes to what the Set recorded. Matching on the hash is what makes looking around safe: a folder of a dozen books cannot produce a wrong answer, it produces no answer, and the picker is still there.

Choosing a book that did not cook this Set is warned about rather than refused — shipping an edited book is a legitimate thing to want; believing it is the source when it is not is the thing nothing on the screen would have told you.

Also reviewed and not a bug: the Single file / Folder radios really do change the shape. They are now driven from the real controls in a test rather than assumed.

Downloads
